750 Cd/M² LCM G240UAN01.1 10 Bit 6485K AUO LCD Panel
Description Of AUO LCD Panel
AUOptronics Corp. (hereafter called AUO) G240UAN01.1 is a 24.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.0 which was released out on 7 17 2017, G240UAN01.1 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 546.4(W)×352(H)×18.6(D) mm, viewing area size of 521.4(W)×327.0(H) mm, with surface treament of Antiglare, net weight of 2.50Kgs (Typ.).
Specification Of AUO LCD Panel
| Model Name | G240UAN01.1 |
| Panel Size | 24.0 inch |
| OP Temperature | 0 ~ 40 °C |
| ST Temperature | -20 ~ 50 °C |
| Luminance | 750 cd/m² (Typ.) |
| Color Temperature | 6485K |
| Signal Interface | LVDS (2 ch, 10-bit) |
| Consumption | 4.8/7.2W (Typ./Max.) |
AUO G240UAN01.1 Interface Detail
| Signal Electrical : | Input Current 0.4/0.6A (Typ./Max.) Input Voltage 12.0V (Typ.) Consumption 4.8/7.2W (Typ./Max.) Signal Interface LVDS (2 ch, 10-bit) |
| Interface Features : | Position Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment  JAE 0.5 mm 51 pins 1 pcs |
AUO G240UAN01.1 Optical Details
| Basic Detail : | Luminance 750 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(Tr+Td) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 1.07B (8-bit + Hi-FRC) Color Temperature 6485K White Variation 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio 88% sRGB 100% coverage Adobe RGB 80% coverage DCI-P3 90% coverage Rec.2020 65% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility Sunlight Readable Transmissivity - |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| M270HVN02.1 CELL | AUO | 27.0" |
| M270DTN01.0 CELL | AUO | 27.0" |
| T320HVN05.7 CELL | AUO | 31.5" |
| T320HVN05.4 CELL | AUO | 31.5" |
| T215HVN01.2 CELL | AUO | 21.5" |
| B070ATN02.0 CELL | AUO | 7.0" |
| M238DAN01.3 CELL | AUO | 23.8" |
| B070AAN01.0 | AUO | 7.0" |
| M238DAN01.1 CELL | AUO | 23.8" |
| M270DAN02.0 CELL | AUO | 27.0" |
| H598DAN03.0 | AUO | 6.0" |
| H546TAN02.3 | AUO | 5.5" |
| G173HW01 V0 CELL | AUO | 17.3" |
| T320HVN05.A CELL | AUO | 31.5" |
Application Of AUO LCD Panel G240UAN01.1
1. Smart Home
2. Palm POS
3. Industrial Palm Terminal
4. Desktop financial Terminal
Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Product Tags:
|
|

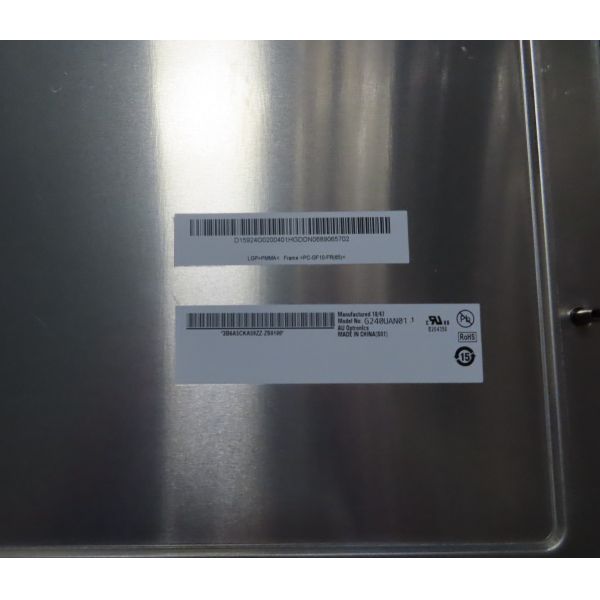

750 Cd/M² LCM G240UAN01.1 10 Bit 6485K AUO LCD Panel Images
|
